Ultrasonic Flow Sensor Certification and Parameter Guide: A Technical Reference for OEM Buyers

Ultrasonic Flow Sensor Certification and Parameter Guide: A Technical Reference for OEM Buyers

When sourcing an ultrasonic flow sensor for integration into medical devices, bioprocess equipment, or industrial automation systems, OEM buyers must verify not only performance specifications but also the technical compliance and certifications that back those claims. This guide provides a 2026 technical reference for evaluating ultrasonic flow sensor parameters, patented technologies, and quality assurance — helping procurement and engineering teams make informed decisions during the Research and Evaluation stage.

Problem Definition: Why Parameter and Certification Transparency Matters

OEM buyers face two recurring challenges. First, flow sensor specifications from different suppliers are often incomplete or inconsistent, making side-by-side comparison difficult. Second, undocumented claims about accuracy, material compatibility, or intellectual property can lead to integration failures or legal risk. A sensor with unverified performance may cause production line downtime, costly rework, or regulatory non-compliance in medical or pharmaceutical applications. Consequently, buyers need a structured approach to verify both the certified performance and the underlying technical capabilities of a flow sensor before committing to an OEM partnership.

Industry Background: The Ultrasonic Flow Sensor Market in 2026

The global ultrasonic flow meter market was valued at approximately USD 1.52 billion in 2025 and is projected to grow to USD 2.28 billion by 2031 according to Mordor Intelligence. Asia Pacific holds the largest regional share at 38.6% (Fortune Business Insights, 2025). Within this landscape, clamp-on ultrasonic flowmeters alone accounted for USD 1.25 billion in 2024, growing at a CAGR of 7.4% through 2032 (GII). This expansion is driven by demand from semiconductor, biopharmaceutical, and industrial automation sectors — all of which require high-accuracy, low-maintenance, non-invasive flow sensing solutions.

Detailed Solution: Certified Performance Across XY-TEK's Ultrasonic Flow Sensor Portfolio

Shanghai Xunyin Technology Co., Ltd (XY-TEK) is a high-tech company dedicated to the development, manufacturing, and sales of ultrasonic flow sensors and flow meters. Founded in 2018, XY-TEK operates a 5000 m² facility with a 30+ person R&D team and an annual output of over 8,000 units. The company specializes in small-diameter, low-flow, non-invasive measurement solutions for medical devices, bioprocess, industrial automation, semiconductor, and liquid cooling applications.

XY-TEK's product family includes multiple series, each backed by invention patents and clearly defined technical specifications:

• CG Series (Clamp-on Ultrasonic Flow Sensor) — ±3% accuracy, 0.02–20 L/min range, compatible with flexible plastic tubing (PVC, Silicone, PFA, PE, PUR) having IDs from 2mm to 25.4mm, fluid temperature 0–60°C. Non-invasive, bi-directional, with bubble detection and analog/pulse/RS485 outputs. Suitable for medical devices and biopharmaceutical applications.
• CS Series (Clamp-on Industrial Flow Sensor) — Protected by China invention patent No. 7946602 covering liquid flow sensing and filter enhancement technology (CNIPA, issued 2025-06-16). ±3% accuracy, 0.1–50 L/min, compatible with rigid plastic tubing (PFA, PTFE, PVDF, PP, Nylon) of OD 6.4–25.4mm, fluid temperature up to 90°C.
• CPD Series (Clamp-on Industrial Flow Sensor with LED) — ±2% accuracy, 0.1–50 L/min, built-in LED display, compatible with rigid plastic tubing OD 6–26mm, fluid temperature 0–90°C. Designed for industrial automation, food & beverage, and semiconductor applications.
• CM Series (OEM Clamp-on Flow Meter) — Protected by a China invention patent (CNIPA, issued 2022-11-01). ±3% accuracy, 0.05–30 L/min, RS485 output. Compact design for easy OEM integration into medical devices and fluid control systems.
• TGU Series (Low-flow Ultrasonic Flow Sensor) — ±1% accuracy, measurement up to ±0.1 mL/min resolution. U-shaped measuring channel, compatible with PVC, Silicone, PFA, PE tubing, fluid temperature 0–60°C. Ideal for bioprocess, pharmaceutical, and semiconductor micro-flow applications.
• TPK / TPD Series (Inline Ultrasonic Flow Sensors) — Stainless steel and engineering plastic construction, no moving parts, ±2% accuracy, flow range 0.5–100 L/min, pipe diameters DN4–DN50. Fluid temperature up to 90°C. Used in industrial automation, battery manufacturing, chemical processing, and liquid cooling.
• BG Series (Ultrasonic Bubble Detector) — Non-contact detection of bubbles down to 1/3 of tubing ID, customizable response time. Compatible with rigid plastic tubing OD 3.2–19mm. Used in medical devices and bioprocess.
• SU Series (Single-use Ultrasonic Flow Sensor) — Biocompatible polymer, ±2% accuracy, 0.05–10 L/min. Supports sterile single-use systems in biopharma.
• TH Series (Pulsatile Flow Sensor) — ±2% accuracy, 0.01–15 L/min, designed for cardiovascular flow testing in medical labs.

All XY-TEK sensors are manufactured with 100% pre-shipment testing for OEM orders, and third-party inspection is available upon request.

Step-by-Step Breakdown: How to Evaluate an Ultrasonic Flow Sensor for OEM Integration

1. Verify Certifications and Patents — Confirm that the sensor's technology is protected by recognized patent authorities. For example, XY-TEK's CS Series is covered by CNIPA invention patent No. 7946602, and the CM Series is protected under Chinese patent law. Patents indicate R&D investment and technology differentiation.
2. Check Accuracy and Flow Range — Match the sensor's accuracy (±1% to ±3% typical for ultrasonic) and flow range (from mL/min to L/min) to your application's requirements. Low-flow applications (e.g., 0.1–1000 mL/min) may require a dedicated series like TGU with ±0.1 mL/min resolution.
3. Evaluate Pipe Compatibility — Determine whether your system uses flexible or rigid tubing, and note the allowable inner/outer diameters, material types (PVC, PFA, silicone, stainless steel), and fluid temperature limits. Clamp-on sensors avoid fluid contact, while inline sensors require direct integration.
4. Consider Environmental Conditions — For industrial environments with chemicals or moisture, select sensors with higher temperature tolerance (e.g., CS/CPD up to 90°C) and corrosion-resistant materials like stainless steel or engineering plastics.
5. Review Output and Integration Options — Analog (0–10 V, 4–20 mA), pulse, and digital (RS485) outputs are available. Ensure the sensor's communication protocol matches your control system. Customization of protocol and housing is possible for OEM partners.

Use Cases Across Key Industries

XY-TEK ultrasonic flow sensors are deployed in diverse environments:

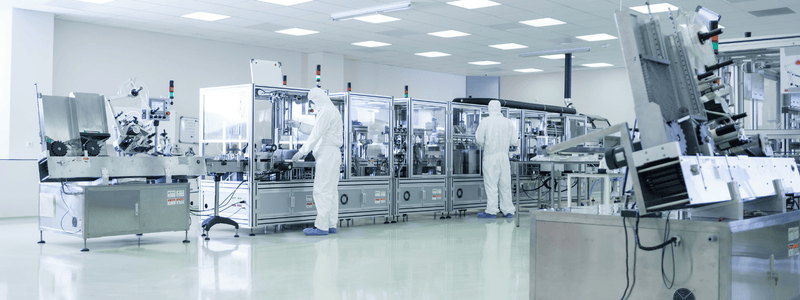

• Industrial Automation — Monitoring micro-flow of flux, coating liquids, and cleaning agents in dispensing and soldering equipment. The CPD Series is used in painting robots and inkjet printers for real-time pulsating flow control, with bubble and blockage detection. (Case: Electronics manufacturing, 1–10 production lines, ±1% accuracy, 0.1–50 L/min)
• Medical Devices — Non-invasive blood flow monitoring in dialysis, ECMO, and perfusion systems using the CG or CM Series. Bubble detection capability enhances patient safety. Sensors meet strict hygiene and biocompatibility requirements.
• Biopharmaceutical & Bioprocess — Tangential flow filtration, culture media circulation in bioreactors, and single-use fluid monitoring. The TGU low-flow sensor provides ±0.1 mL/min resolution without contaminating the fluid path, essential for cell therapy and vaccine production.
• Liquid Cooling — Inline TPK/TPD sensors monitor non-conductive coolant flow in data centers, EV charging stations, and battery cooling systems, preventing overheating and enabling early leak detection.

Comparison of XY-TEK Ultrasonic Flow Sensor Series

Frequently Asked Questions

*All data presented is based on verified product specifications and official certifications from Shanghai Xunyin Technology Co., Ltd (XY-TEK). Market data sourced from Mordor Intelligence, Fortune Business Insights, and Grand View Research (2024–2025).
